How to measure for Stick Fit Blinds | 247 Guides

Stick Fit blinds have been specially made as a screw-free method of fitting. All you need to fit is the adhesive support channels, and the blind. Clip together and done! We'll take you through how to measure so you can have a perfect fit in no time!



A measuring clickable iconA measuring clickable icon

Measuring your Glass

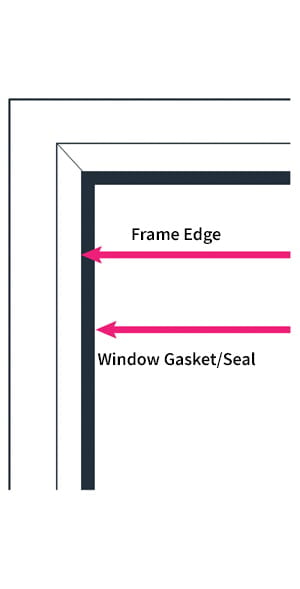

To ensure the best possible fit, we require accurate measurements for both the width and drop of the blind.  Measure the visible glass size — This is the glass you can see between the window seal. This is also known as the window beading or gasket seal.



Please note, the blind projects 35mm outwards from the glass to the very front of the blind fold-down handle. This is important for fitting to bi-fold doors.

An image showing how to measure visible glass sizeAn image showing how to measure visible glass size

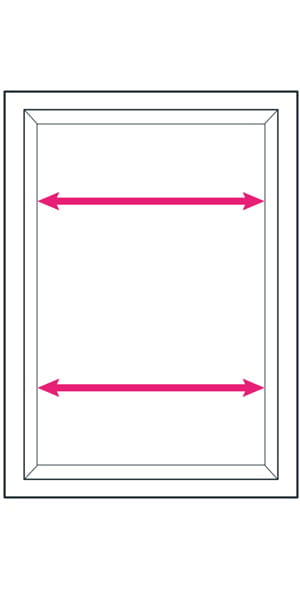

Measure the Width

Take three measurements for the width, top, middle, and bottom.  If there is any variation*, always use the shortest width to order your blinds.

If the windows are particularly large, you can take the intermediate measurements to double-check.

Note: We also ask you measure the middle area as well to ensure there is not more than a 4mm difference between each measurement. If this is the case, please get in touch with us to talk through your measurements, as we want to ensure the best possible fit for your new blind!

An image showing how to measure the widthAn image showing how to measure the width

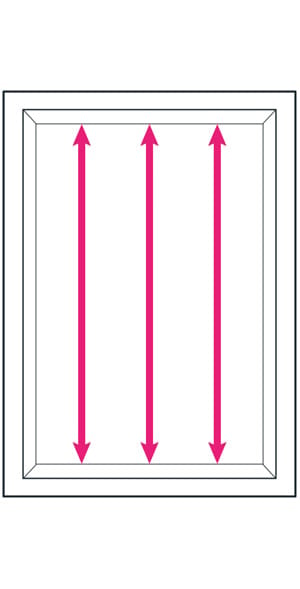

Measure the Drop

Take three measurements for the window drop. If there is any variation*, then always use the shortest  measurement.

An image showing how to measure the dropAn image showing how to measure the drop
