Before getting started, we recommend reviewing our Measuring Guide to make sure you have accurate dimensions, as this will directly impact your cassette selection and overall results. If you're new to our range, you can also explore the Open Cassette options for an overview of available options, features, and configurations.

With the right measurements and a clear understanding of your requirements, fitting an open cassette becomes a straightforward process. Let’s get started.

View our downloadable guide below:

View our how to fit Full Cassette Awnings guide below, or view the fitting page here

View our how to fit Electric Full Cassette Awnings guide below, or view the fitting page here

We strongly recommend at least 2 people, preferably 3, for this installation. Awnings are very heavy and attempting to install them alone can be difficult and dangerous.

Hammer

Spanner

Allen key

Pencil

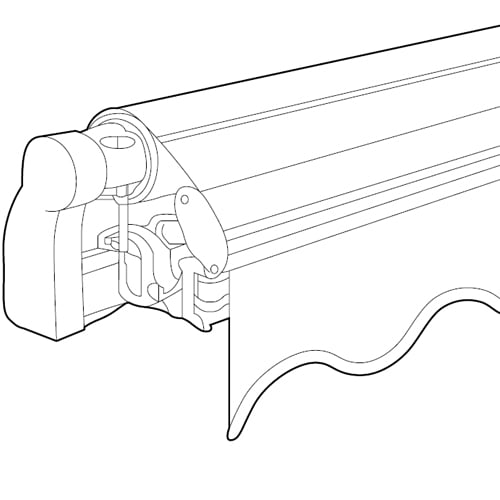

Awning (pre-assembled)

Hand crank

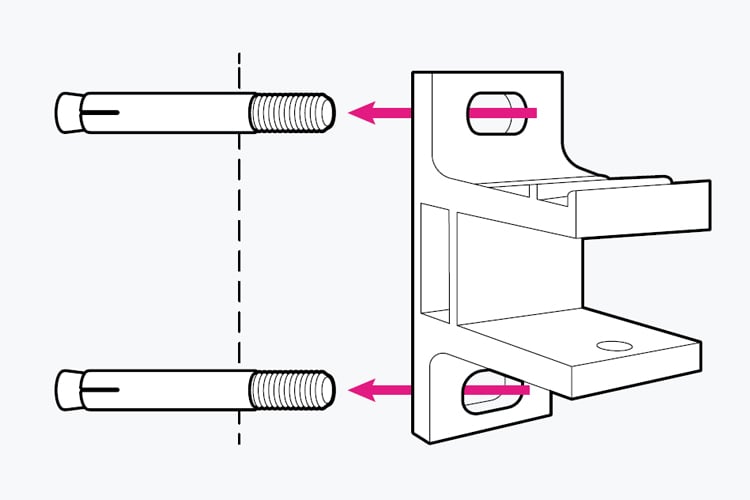

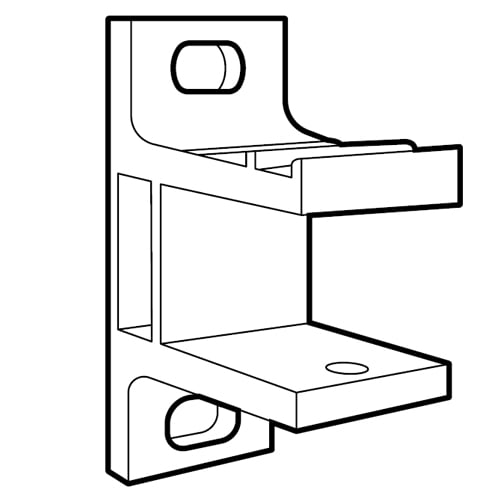

Wall brackets x2

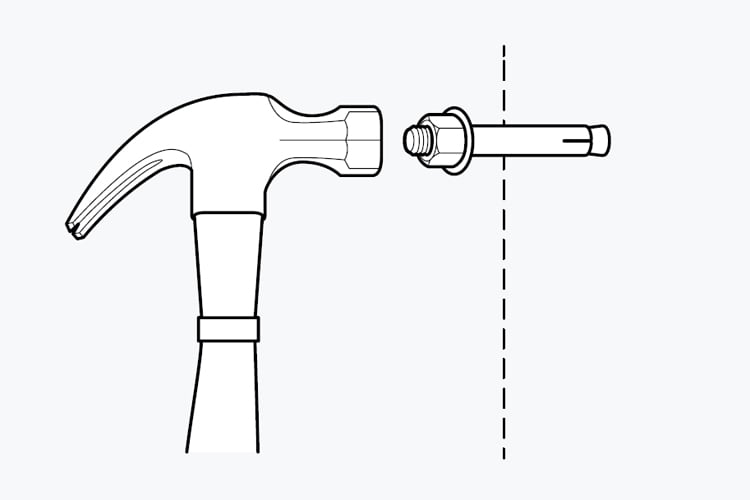

Wall Anchors x4

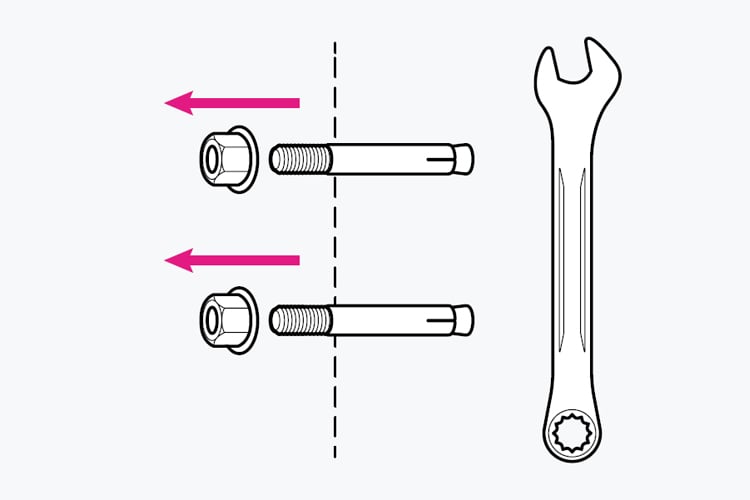

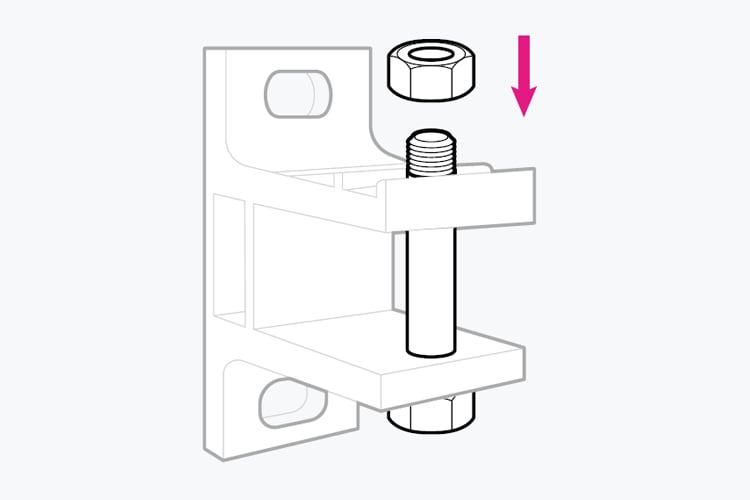

Retaining bolts x2

If you are installing your awning above a window/door, you need to ensure enough room is left between the top of your window and the awning.

To do this, measure 450mm up from the top of the window/door and use a spirit level / laser level and chalk to mark a straight line. This is the minimum height at which the awning should be installed.

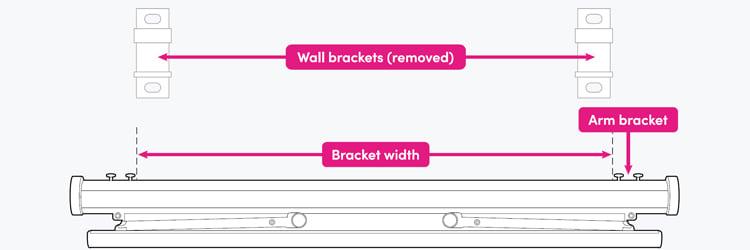

The awning will arrive pre-assembled with the wall brackets attached. Measure the distance between the brackets. This will be your ‘bracket width’.

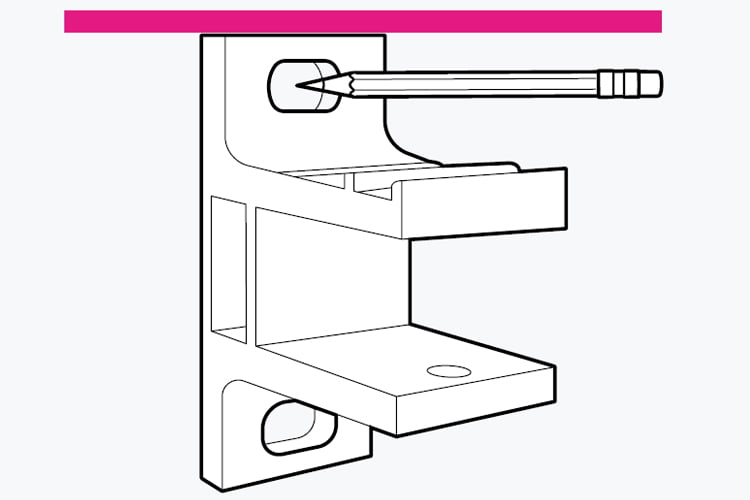

Use the bracket width and the fitting location identified in the first step to place the brackets where you will be installing them. The lower screw should be positioned on or above the line you marked earlier. Mark the screw holes with a pencil; try to mark these as far away from the mortar between the bricks as possible.

Make sure these screw holes are marked on the same horizontal line. You can do this using a laser level, or by placing a spirit level on a long enough object you know to be straight.

Hook the hand crank onto the awning’s crank mechanism to complete the installation. Rotate the crank to operate the blind. Be mindful not to stand directly underneath or in front of the awning when operating.

Important: It’s important to keep your awning either fully retracted or fully extended, as the arms are strongest in these positions. When fully extended, the arms should be slightly bent, not locked out straight.

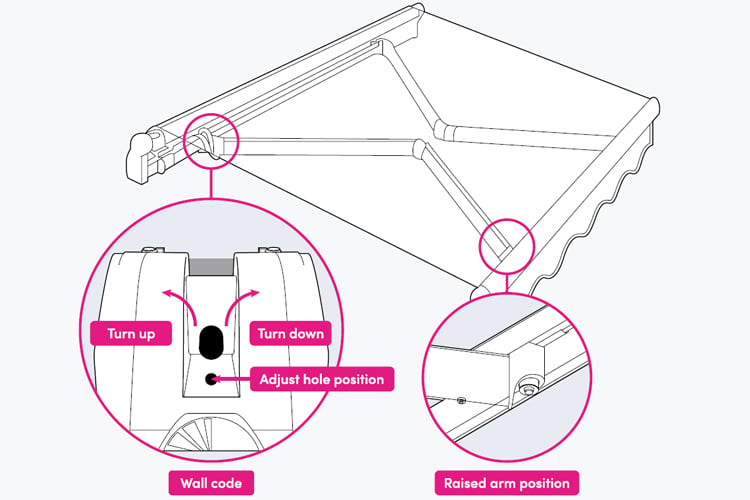

If you find that one side of your awning is higher/lower than the other when fully extended, you can adjust the height level of the arms.

You will find an adjustment hole located on each arm bracket. Fully extend the blinds, then use a hexagonal key to adjust the height, rotate clockwise to lower the arm, or anti-clockwise to raise the arm.

Clean the fabric at least once a year with a sponge or soft brush and warm, clean water. For any stains, use a mild detergent. Avoid using harsh chemicals or cleaning products.

Clean the frame/metal components at least once a year with a sponge and warm, clean water.

Spray any moving parts with WD40/lubricant at least once a year to reduce wear.

Whilst the fabric is weather-resistant, if it does get wet from cleaning or rain, ensure you leave it fully extended to dry at the first opportunity to prevent mildew.

If the awning is not being used for an extended period of time, make sure to take it down and store it under cover where possible.

IMPORTANT: Usage Precautions: Ensure you retract the awning before strong winds, heavy rain, or other severe weather to prevent damage to the awning or the structure it’s attached to.
